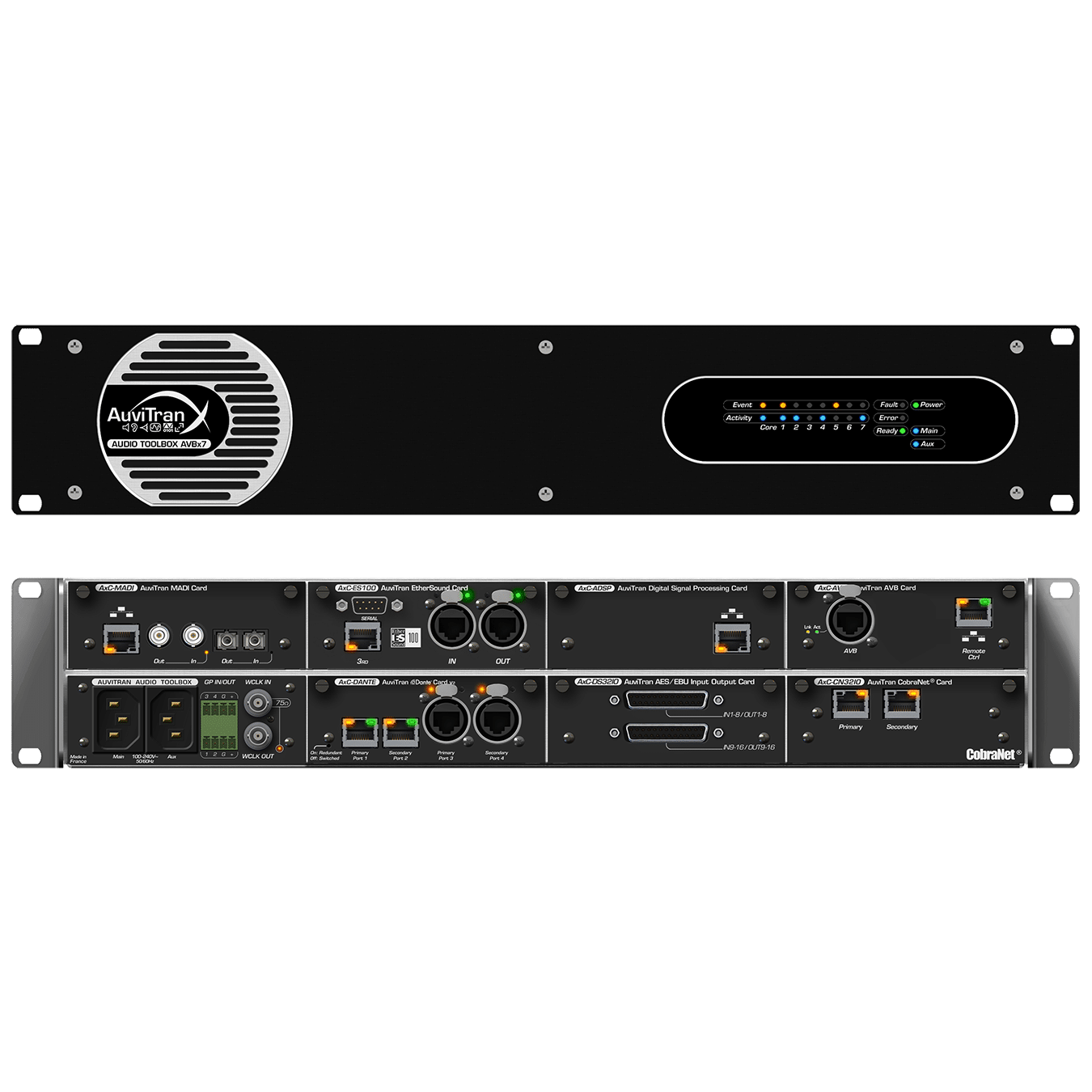

Audio ToolBox AVBx7 Touch Control
The Routing matrix with Control at your fingertips
Touch, rotate, select, automate, play: AVBx7 Touch Control makes it easy – easy to achieve interoperability
of various audio protocols, easy to build automation (standard feature) and security scenarios. Now
featuring a touchscreen and rotary control to simplify every operation, AVBx7 Touch Control is a multiformat routing matrix with embedded mixer that simplifies navigation, monitoring or settings
modification. AuviTran’s iconic audio platform thereby confirms it is expandable, sustainable and ready to
accelerate your projects
Key Features
- 2U rack 19″, 7 slots for AxC interface
cards, for the interconnection of Dante,
MILAN (MILAN certified),
AES67/RAVENNA/ST2110-
30, MADI, analog and
AES3 technologies - Navigation with touchscreen and rotary
control to display, monitor and configure - Remote management with AuviTran’s
complimentary AVS-Monitor software - Seamless compatibility with other AVBx
platforms and 20 AxC interface cards - New 128×128 channels per slot core
- Embedded 64×64 channels full mixer
- Embedded 960×960 channel matrix
- Integrated signal generator
- Robust stainless steel casing
Smart Touchscreen and Rotary Control
DISPLAY & MONITOR
Comprehensive and real-time status slot per slot:
- Smart summary view of all slot channels on 1 page
- VU meters on all channels
ADJUST
Quick access to parameters and settings modifications:
- Audio streams in real-time
- I/O per channel
- Direct touch knob page to recall presets/scene
- Connection between AxC cards
- Firmware status
- Clock sources
STANDARD AUTOMATION FEATURES
Audio professionals and integrators automate scenarios or
security features:
- Mute specific parts of the system (security services,
alarms) - Switch interfaces during any event (redundancy),
enabling swift Nominal mode - Scenes changes
- Backup input and output channels
Technical Specifications
Power Supply
2 internal redundant universal power supply units
(100-240 VAC – Max 110W)
Temp/Humidity
Storage: – 5°C to 70°C / 0% to 95%
(non-condensing)
Operating: 0 °C to 40°C / 5% to 90%
(non-condensing)
Display panel
3.4 inch capacitive Touch TFT LCD with a
resolution of 640×180 pixels
Connections
2 x IEC 320-2-2/F power inlets for the two internal
redundant power supply units
2 x BNC for Word Clock In and Out
2 x Euroblock 4 poles for GPIO
7 x slots to insert up to 7 AxC cards
GPIO
4 configurable GPIO. Each GPIO can be set as GPI, GPO, or VCA (ADC 8 bits 0-12V level input) for fader control or level trigger actions
AVS Monitor
AVS-Monitor is a free Windows software that allows for the remote control and monitoring of all AuviTran devices, including all the AxC cards, as well as Digigram ALP-DANTE and ALP-AES67 PCIe interfaces.
Note that the routing on each AoIP network must be configured from the appropriate applications (Dante Controller, Hive, Milan Manager, Anemann, etc).
Part Number
AVBx7
AVBx7 Touch Control Audio ToolBox Installation
AxC audio interfaces
Insert and connect up to 7 AxC audio interfaces to an AVBx7 platform to build the audio configuration that brings convergence and interoperability among audio protocols.
Mechanical Specifications
483 x 253 x 88mm (19″ rack, 2U height) Seven slots available for control and audio
inputs/outputs
