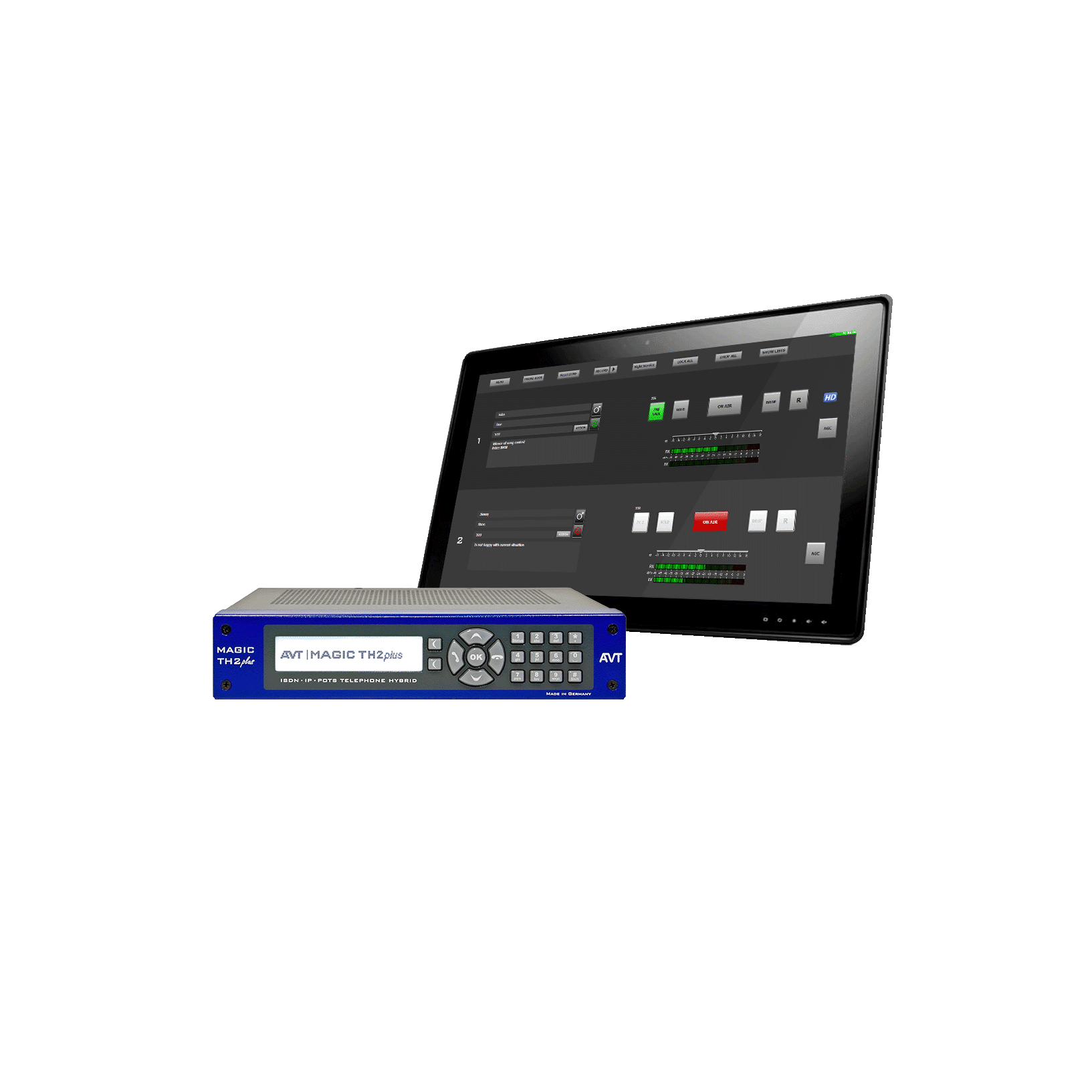

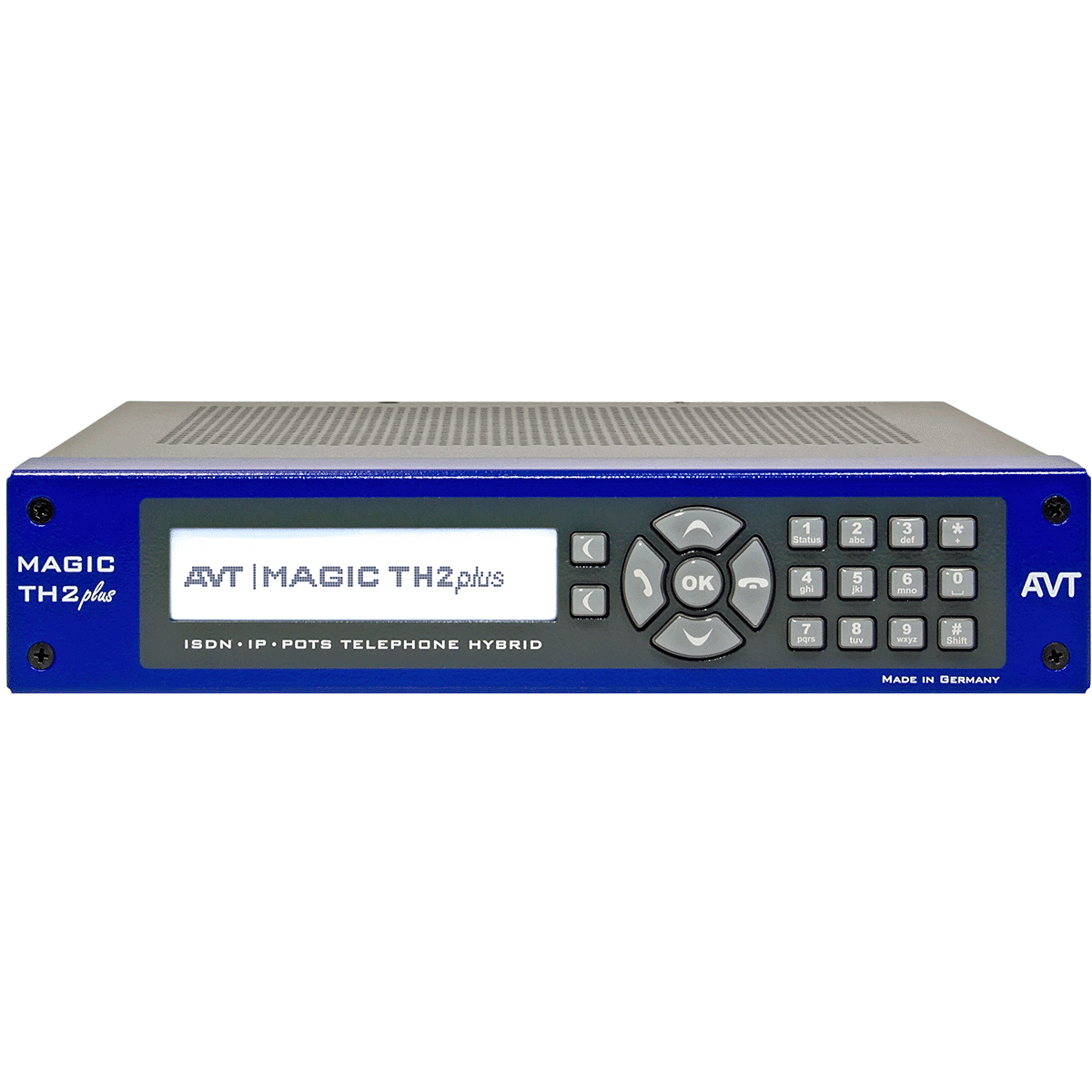

MAGIC TH2plus V2 Digital 2-Channel Telephone Hybrid
The MAGIC TH2plus V2 Telephone Hybrid is a versatile, advanced digital 2-channel telephone hybrid engineered for a wide range of professional broadcast and telecommunications applications. Equipped with two integrated echo cancellers, expanders, and Automatic Gain Controls (AGCs), it delivers pristine, high-quality audio across both analogue and digital communications.

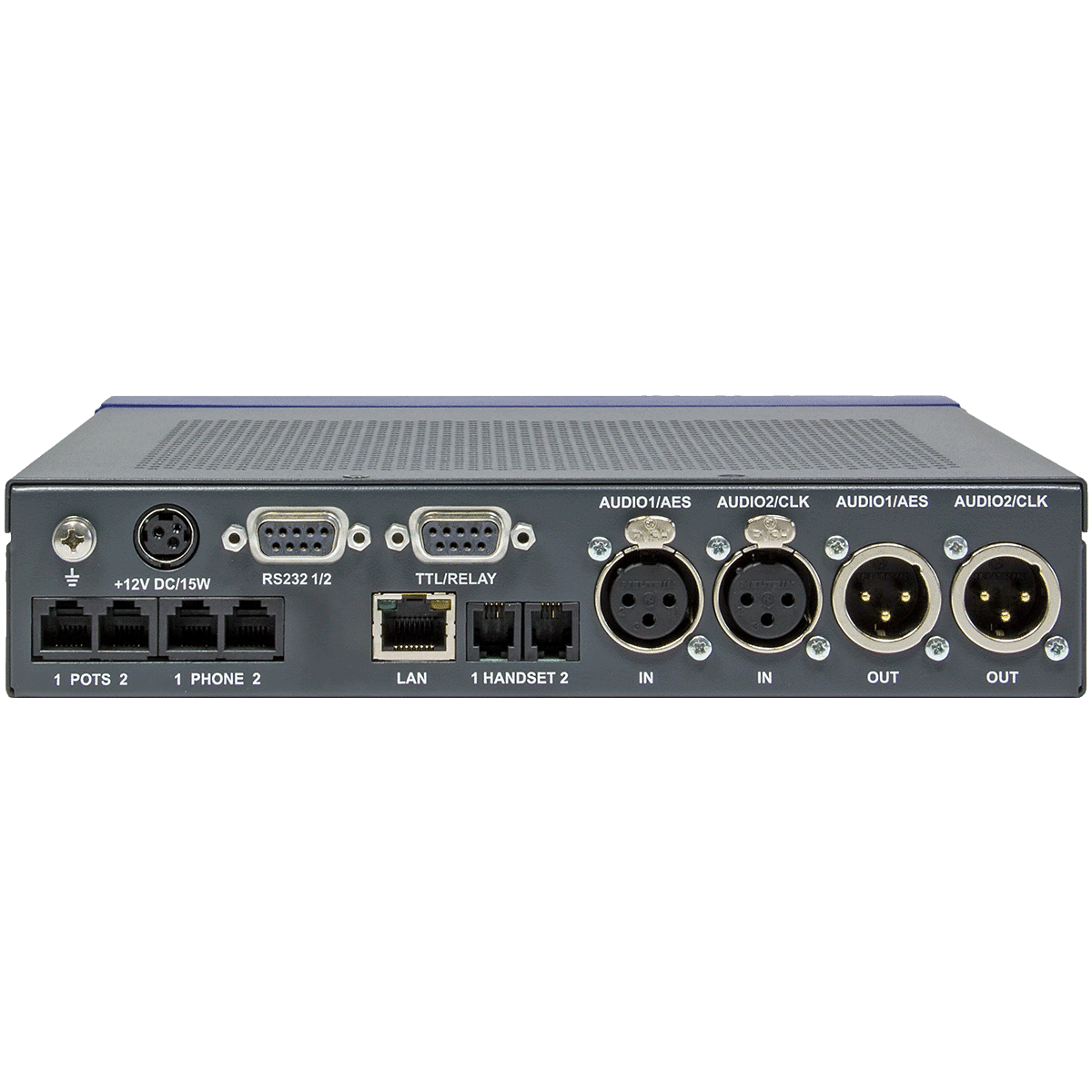

This compact unit features two individual hybrids with two POTS and two phone interfaces. Its two flexible audio channels seamlessly support either analogue or AES/EBU inputs. For straightforward, intuitive operation, the system provides two handset/headset interfaces and two keypad control interfaces.
Key Features & Functionality
- Advanced Audio Processing: Features built-in echo cancellation, expander dynamics, and AGC for broadcast-grade voice quality.
- Enhanced Conferencing: Built-in conferencing functionality and DTMF tone transmission.
- Smart Integration: Full support for EMBER+ and DHD SetLogic protocols.
- LAN Control: Designed for effortless network integration via a standard LAN connection.
- Optional 2-Channel VoIP: Easily upgradeable to support VoIP with G.711 (3.1 kHz telephony standard) and G.722 (7 kHz HD Voice standard) for superior high-definition clarity.
Specifications & Software
- Form Factor: Compact ½ x 19” x 1U chassis.
- Installation: Comes complete with heavy-duty mounting brackets for standard rack installation.
- Power Supply: Powered via an included 12V DC external plug-in unit.
- Connectivity: Includes all necessary line interfaces out of the box.

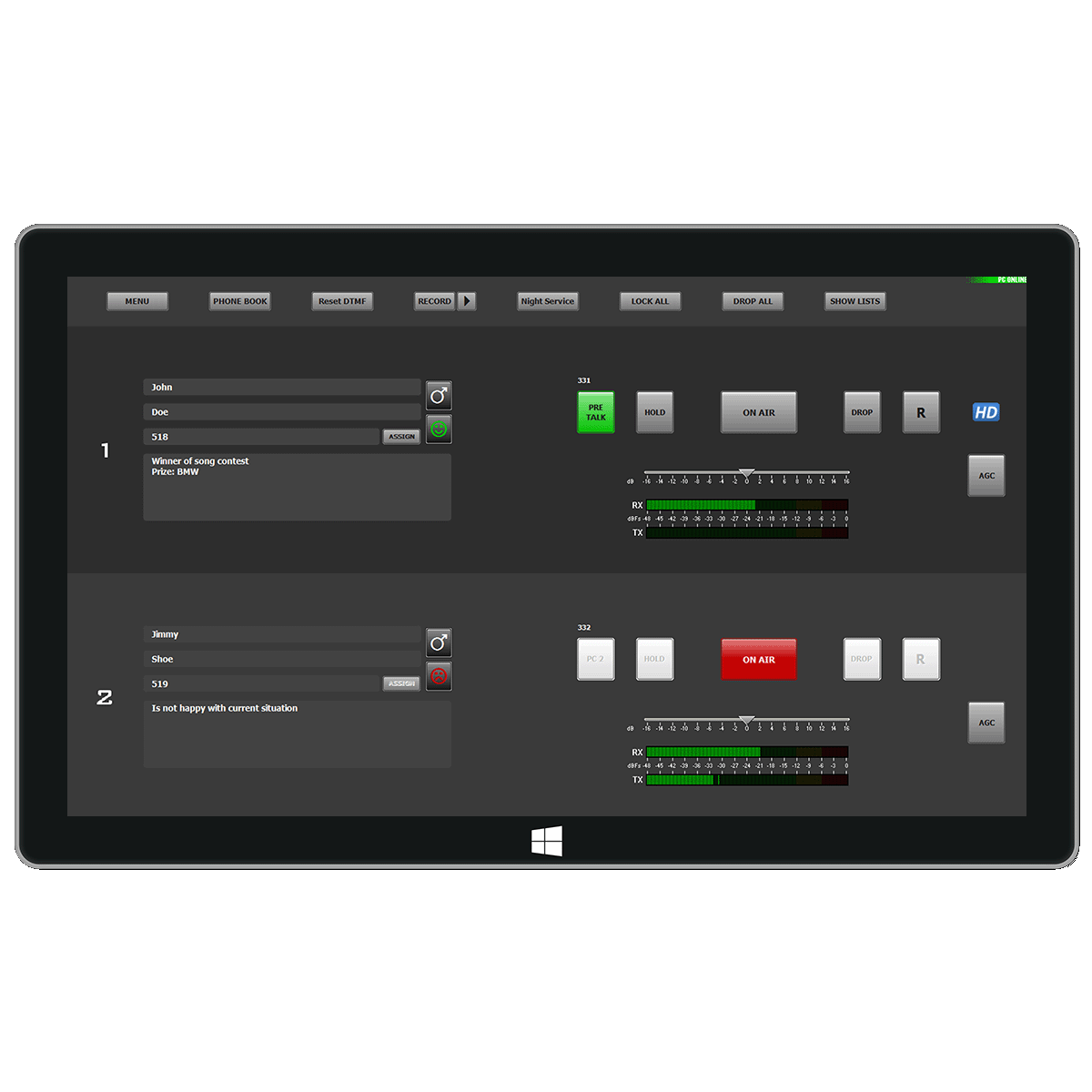

- Control Software: Bundled with the intuitive MAGIC TH2plus software suite for total control and deep customisation of your telephony workflows.
